Chisel Plows and Coulter Chisels

610 INTEGRAL CHISEL PLOW

Offers a variety of sizes
Implement warning lights enable safe transport
Shovels and attaching hardware
Sweeps and attaching hardware

2430 CHISEL PLOW

Hydraulically-adjusted knife-edge rolling basket with internal scraper
TruSet Active improves tillage depth accuracy and makes adjustments for varying field conditions, such as tire sink in soft soils or residue build up on tires, with no need for operator input
Radial tires improve flotation and transport
New rear hitch adjusts side-to-side for easier hookups

CC11 COULTER CHISEL

11 standards
Autonomy Ready in-base
TruSet Active in-base
Tackle varying crop conditions with minimal operator input

CC13 COULTER CHISEL

13 standards
Autonomy Ready in-base
TruSet Active in-base
Tackle varying crop conditions with minimal operator input

CC19 COULTER CHISEL

19 standards
Autonomy Ready in-base
TruSet Active in-base
Tackle varying crop conditions with minimal operator input

CC21 COULTER CHISEL

21 standards
Autonomy Ready in-base
TruSet Active in-base
Tackle varying crop conditions with minimal operator input

CC25 COULTER CHISEL

25 standards
Autonomy Ready in-base
TruSet Active in-base
Tackle varying crop conditions with minimal operator input

John Deere Chisel Plows and Coulter Chisels

Chisel plows and coulter chisels are primary tillage tools that work the soil with rows of standards, and the John Deere 610 offers excellent residue flow so part of the residue stays on the surface. John Deere offers a range of sizes, from the 610 integral chisel plow for smaller tractors to the CC Series coulter chisels that come Autonomy Ready with TruSet Active depth control in base.

Koenig Equipment sells and services John Deere tillage tools across Ohio and Indiana. Request a quote and our team will help you size a tool to your tractor.

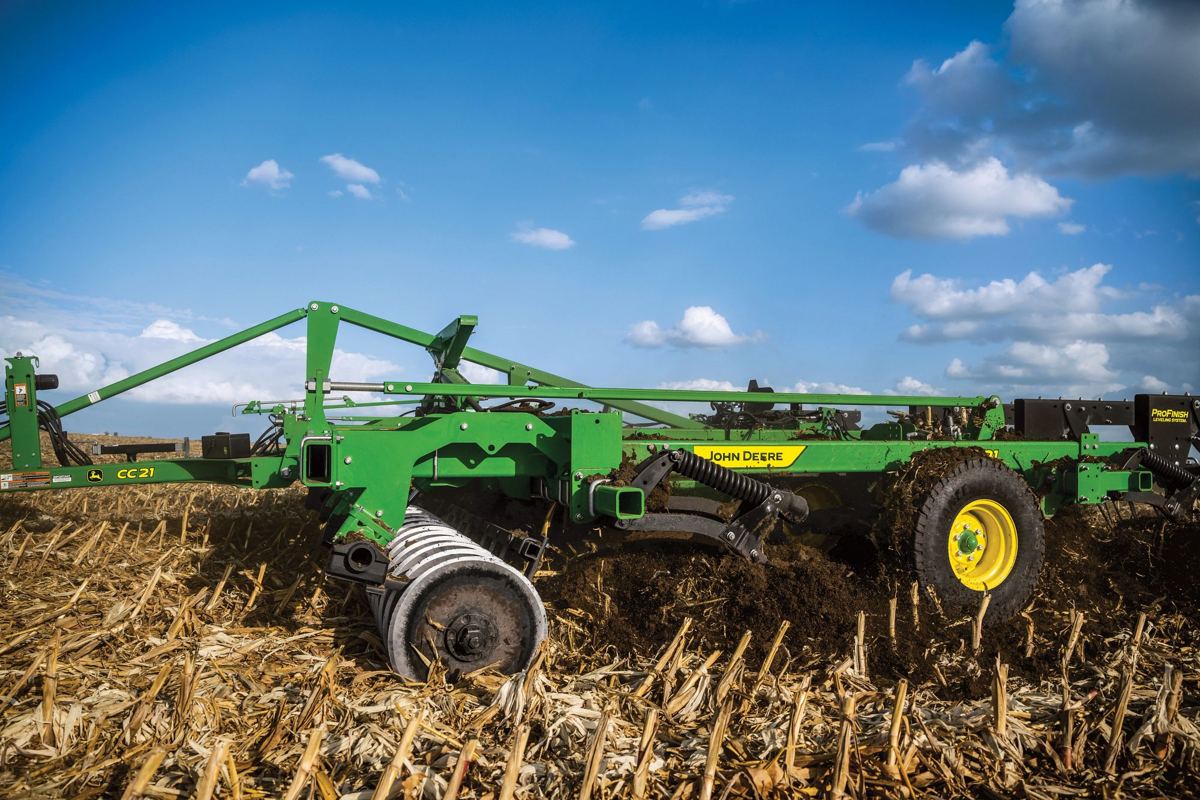

John Deere CC 21 farm implement tilling a field of harvested corn stalks under a cloudy sky

Which Chisel Is Right for You?

Model	Frame	Working width	Standard spacing	HP per foot
610 Integral Chisel Plow	Three-bar integral, non-fold	8 to 20 ft	See model page	6 to 14
2430 Chisel Plow	Rigid, rigid fold, three or five section fold	Up to 63 ft	12 or 16 in	4.5 to 14
CC11 Coulter Chisel	Rigid, 11 standards	13 ft 9 in	15 in	20 to 25
CC13 Coulter Chisel	Rigid, 13 standards	16 ft 3 in	15 in	20 to 25
CC19 Coulter Chisel	19 standards	23 ft 9 in	15 in	20 to 25
CC21 Coulter Chisel	21 standards	26 ft 3 in	15 in	20 to 25
CC25 Coulter Chisel	25 standards	31 ft 3 in	15 in	20 to 25

Horsepower per foot depends on standard type, spacing and conditions. Request a quote on any model page for current pricing and offers.

Wear Parts and Shop Support

Chisel points, shovels and sweeps are wear items, and the right replacement keeps depth and residue cover where you want them. Pick them up at your Koenig parts counter or order anytime on Koenig Marketplace. Our ag technicians can check standards, coulters and hitches over the winter, and our precision team can help with TruSet setup.

Schedule service or ask about an agriculture off-season inspection.

Green John Deere 8R tractor and white Koenig service truck with crane on a gravel lot

Other Tillage Tools and Used Equipment

For deeper compaction, compare rippers and min till rippers and subsoilers. For seedbed work, see field cultivators and mulch finishers. Shopping used? Browse used field cultivators and used disks at Koenig, updated as units come in.

Chisel Plow and Coulter Chisel FAQs

How deep does a John Deere chisel plow work?
On the 2430, rigid and TruPosition standards work to 8 inches and spring-reset TruDepth standards to 12 inches. On the 610, rigid standards till to 8 inches and Tru-Depth standards to 12 inches. CC Series coulter chisels have a recommended operating depth of 6 to 8 inches with a 10 inch maximum.

What size tractor do I need for the 2430?
Plan on roughly 6 to 10 HP per foot of width with rigid or TruPosition standards on 12 inch spacing, more with TruDepth standards. The 2430 frame is built to accommodate tractors up to 600 engine HP.

What is TruSet Active?
TruSet Active adjusts tillage depth for changing field conditions, such as tire sink in soft soil or residue build-up on tires, with no need for operator input. It comes in base on CC Series coulter chisels.

How fast can I run a coulter chisel?
CC Series coulter chisels run at 6 to 7 mph. The 610 and 2430 chisel plows run at 5 to 7 mph.

Which standards are available on the 610?
Rigid standards suit fields with few obstructions, TruPosition standards have a 550 lb trip for fields with rocks, and Tru-Depth standards handle rocky ground and heavy draft with a 1,250 lb trip force.
