Features
1 Family Tractors are designed to minimize the time and effort needed to switch-out implements to accommodate different jobs.
1 Family Tractors can have up to three implements mounted simultaneously due to standard dual selective control valves (SCVs), allowing you to switch from using one implement to another without stopping to adjust. When a third SCV kit is added, the number of possible combinations is greatly increased.
The hydrostatic transmission’s infinite ground speeds and direction of travel are both controlled with the Twin Touch foot pedals.
Both 4WD and power steering are standard equipment on the 1 Family Tractors. This combination allows for excellent maneuverability and ease of operation.

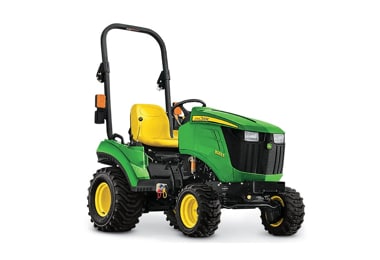

The 1023E open operator station is designed for greater comfort and increased visibility.
Comfortable operation
Foldable Roll-Gard™ ROPS is standard equipment on 1023E.
Updated instrumentation is standard equipment for operating convenience and confidence. Instrumentation includes:
The spring suspension seat adjusts fore/aft for operator convenience. The seat adjustment lever is located in the center under the seat area. The seat flips forward for protection from the elements.
The beverage holder is contour-molded and seated into the fender for a clean look. It is conveniently located and dual-sized to accommodate many containers. The placement of the cup holder is within arm's reach.
Additional storage is conveniently placed into the fender for loose items like keys and work gloves.
The fuel fill location is conveniently accessible on the left-hand side fender. The fuel gauge is located in close proximity to make the fuel refilling process easier.
Standard mechanical mower lift
The standard mechanical mower lift system moves the mower in conjunction with the rear implements and comes factory-installed on 1 Family Tractors.
Optional hydraulic mower lift
The optional hydraulic mower lift system allows the mower to be raised and lowered independently of the rear implements. It uses the loader joystick to lift and lower the mower deck.
Optional independent hydraulic mower lift
The optional independent hydraulic lift system allows the mower to be raised and lowered independently of the rear and front implements. It operates using a rocker switch mounted on the tractor, located at the operator’s left knee.
For more information on this mid mower lift system click here.
Setup, operate, and maintain your tractor with Equipment Mobile and a John Deere Smart Connector.
To download the free Equipment Mobile app, visit the Apple® App Store® or Google Play™ store.
You can now view information about your tractor with a Smart Connector in Equipment Mobile. Take advantage of familiar TractorPlus features in Equipment Mobile such as the Live Dashboard and Diagnostic Trouble Code alerts. Equipment Mobile offers additional tools to help you manage not just your tractor, but your entire fleet in one place.
Any size and type of operation will appreciate the features in Equipment Mobile. View help documentation to learn more about the application.
A John Deere account is needed to use the Equipment Mobile app. Here’s a great overview of how to do it: How to Create A John Deere Account | John Deere (youtube.com)
Equipment Mobile:
Please note that Smart Connectors offer local connectivity via Bluetooth, while JDLink modems enable remote connectivity and provide valuable data including location, machine performance metrics, health data, access to John Deere Connected Support services, and more.
Users can still benefit from Equipment Mobile if they do not have a Smart Connector.
Installing the Smart Connector will offer additional capabilities to help monitor equipment by sending information from the tractor to the user’s mobile device using Bluetooth® wireless capability. The following table outlines the differences between using Equipment Mobile with and without a Smart Connector.
Equipment Mobile app |
Additional Equipment Mobile app features with Smart Connector |
|
|
To pair the John Deere Smart Connector with a phone and tractor, you must first be in range with the tractor equipped with the John Deere Smart Connector. Once the Smart Connector is plugged in and the tractor is keyed on, the Smart Connector will be available to pair within Equipment Mobile. The flow of pairing a Smart Connector in Equipment Mobile is shown below.
Apple and App Store are trademarks of Apple Inc. Google Play, and YouTube are trademarks of Google LLC. Bluetooth is a trademark of Bluetooth SIG, Inc.
Key Specs | Current Model |
Engine power (gross) | SAE J1995 rated power: 16 kW 21.5 hp 21.8 PS at 3200 rpm |
Power take-off (PTO) power | 12.1 kW 16.2 hp |
Steering hydraulics | 13.2 L/min 3.5 gpm |
Implement hydraulics | 13.2 L/min 3.5 gpm |
Hitch type | Limited Category 1 |
Lift capacity, 24-in. behind link arms | 344 kg 758 lb |
Standard transmission; forward/reverse | Hydrostatic - two range |
Cruise control | No |
Approximate shipping weight (open-station; cab) | Open station: 656 kg 1446 lb Cab: Not applicable |
Wheelbase | 1450 mm 57.1 in. |
Engine | |
Family | |
Manufacturer | Yanmar® |
Engine model | 3TNM74F-NCJT |
Engine power (gross) | SAE J1995 rated power: 16 kW 21.5 hp 21.8 PS at 3200 rpm |
Power take-off (PTO) power | 12.1 kW 16.2 hp |
Rated engine speed | 3200 rpm |
Type | Diesel |
Injection pump type | Indirect injection |
Aspiration | Natural |
Emissions compliance | Final Tier 4 |
Cylinders/displacement | Three cylinders: 0.993 L 60.6 cu in. |
Number of cylinders | Three |
Cylinder liners | Cast-in-block |
Bore and stroke | 74 x 77 mm 2.91 x 3.03 in. |
Compression ratio | 23.5:1 |
Lubrication | Pressurized |
Cooling system | Water pump |
Air cleaner | Dual element |
Engine torque at rated speed | 47.7 Nm 35.2 lb-ft |
Fuel tank capacity | 24 L 6.3 U.S. gal. |
Electrical | |
Battery size | 500 CCA |
Alternator (12-V) | 40 amp |
Starter size | 1.2 kW 1.6 hp |
Fuel system | |
Type | Indirect injection |
Fuel consumption | |
Transmission | |
Standard transmission; forward/reverse | Hydrostatic - two range |
Optional transmission; forward/reverse | |
Left-hand reverser | No |
Transmission gear ranges | |
Final drive | Spur gear |
Brakes | Wet disc (left-hand pedal) |
Steering | Power |
Clutch, wet/dry | |
Clutch disk diameter wet clutch | |
Axle capacity | Front 612 kg 1349 lb Rear 715 kg 1576 lb |
Creeper | No |
Cruise control | No |
Differential lock | Yes |
Drawbar maximum vertical load | |
Hydraulics | |
Type | Open center |
Pump rated output | Steering 13.2 L/min 3.5 gpm Implement 13.2 L/min 3.5 gpm 24 L/min 6.3 gpm |
Pump type | Single gear |
Maximum operating pressure | 138 bar 2000 psi |
Draft control sensing | Select control |
Remote control valves available | Three |
3-point hitch | |
Type | Limited Category 1 |
Lift capacity, 24-in. behind link arms | 344 kg 758 lb |
Power take-off (PTO) | |
Standard | Rear: 540 rpm Mid: 2100 rpm |
Optional | |
Control | Independent |
Clutch | Wet disk |
Brake (for mid and rear PTO) | Wet disk |
Engagement method | |
Fluid capacities | |
Crankcase with filter | 2.7 L 2.9 gal. |
Transmission and hydraulic system | 12.3 L 3.2 gal. |
Final drive | |
Type | Spur gear |
Differential lock | Yes |
Operator station | |
Rollover protective structure | Type Foldable Yes |
Platform - flat/straddle | One-piece semi flat |
Gear shift location - console/floor | Left-hand side |
Cab | |
Compliance | |
Visibility | |
Air conditioning, temperature differential | |
Doors | |
Noise rating | |
Seat equipment | |
Dimensions | |
Height | |
Wheelbase | 1450 mm 57.1 in. |
Front axle clearance | 195 mm 7.7 in. |
Turning radius with brakes | |
Turning radius without brakes | Outside front tire: 2.51 m 8.2 ft |
Limited slip differential | No |
Approximate shipping weight (open-station; cab) | Open station: 656 kg 1446 lb Cab: Not applicable |
Tires | |
Front | R3 Turf: 18x8.50-10 R4: 18x8.5-10 |
Rear | R3 Turf: 26x12-12 R4: 26x12-12 |
Front tread range | 931 mm 36.7 in. |
Rear tread spacing | 895 mm 35.2 in. |
Miscellaneous | |
Toolbox | Yes |
Tilt steering wheel | |
12-V Outlet | |
Additional information | |
